EBO 48V 500W Electric Hub Motor
 EBO 48V 500W Brushless Geared Hub Motor EBO Julet Brushless Geared Hub Motor Connector |
|
Product Specifications
* denotes required field
Motor Designed for Wheel Size*
|

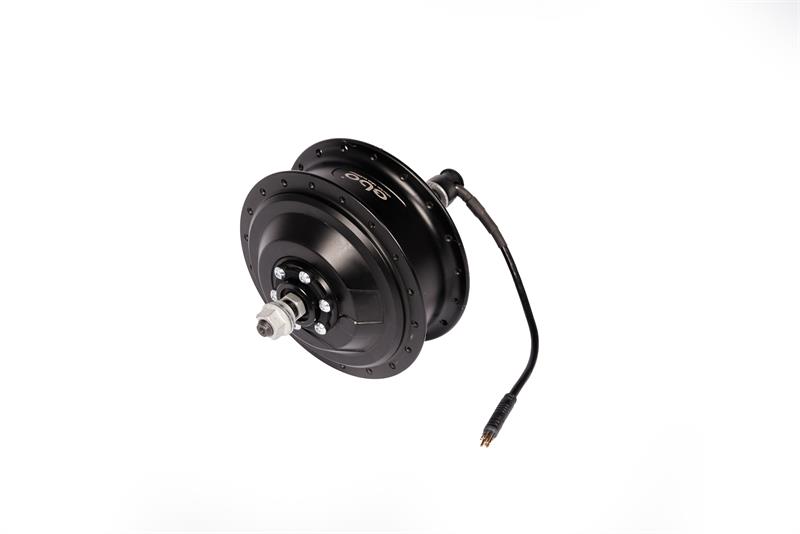

Electric Bike Outfitters 48V 500W (1056W Peak Power) electric brushless geared rear hub motor. All hub motors are disc brake compatible with freewheel threads. Standard with Julet power connector, and axle mounting hardware included.
48V 500W Rear Brushless Geared Hub Motor
Rated Voltage (V): 48V
Rated Power (W): 500W
Max Torque (N.m) - 65
Wheel Size: 20" - 29"
Rated Speed: 20-28 mph
Rated Efficiency: <=80
Reduction Ratio: 1:5
Weight (Kg): 4.2
Spoke Specification: 12 gauge/13 gauge
Open Sizes: 135mm, 142mm
Drive/Freewheel: 6-10 Gear Speed
Hall Sensors
Connector: JL-F-Z910AG
Integrated Speed Sensor
Color: Black
Item Number:
EBO 48V 500W Electric Hub Motor
EBO Axle Hardware: spacers, washers, and torque washers.
|
Electric Bike Outfitters black or silver rim. Ideal for making your EBO hub motor rim match your bike or if you just need a sturdy new motor rim.
|
Electric Bike Outfitters silver 12 gauge e-bike spokes and nipples.
|
|
|
Electric Bike Outfitters Julet water-resistant wiring harnesses. Different lengths harnesses between the motor and controller.
| |
|
|
