NIK Step-Thru E-Bike


Price: $2,499.00

Product Specifications

* denotes required field

Size*
Color*

NIK E-Bike Step-Thru Specifications:

Sizes – S/M 16”, M/L 18”

Colors – Charcoal (YS 7322), Ivory (770), Sea Mist (YS 7346)

Frame – Aluminum Grade 6061

Fork - Aluminum Grade 6061

Shock – N/A

Handlebar –  31.8mm, 680mm Length, 35mm Riser, 15 Degree Backsweep

Grips – Durable Non-Slip Ergonomic Bicycle Handlebar Grips, G001

Stem – UNO Advance Project, 110mm, + 60-degree Adjustable Stem, Diameter 31.8mm

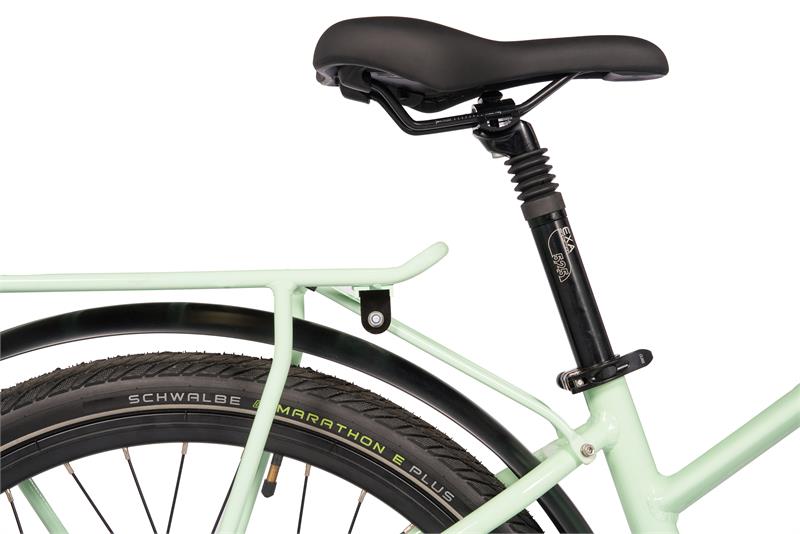

Seatpost – EXA Form 525 Suspension Seat Post. Travel 40mm

Saddle – Selle Royal, Freeway

Pedals - Wellgo

Shifters - Shimano Acera, 8s Black

Rear Derailleur - Shimano Acera 8s Black

Brakes – HD- E350 TEKTRO Hydraulic [F]160mm, [R]160mm

E-Brake Levers – HD-E350 Tektro Hydraulic with Motor Cutoff Intergraded

Cassette - Shimano 8s, 11-34T

Chain – TEC C8

Crankset – Single Speed 44T, 170mm with Chainguard

Bottom Bracket – Shimano (BB-UN300) or Equal Quality BB with Sealed Bearings

Rims - POWER P19D, Double Wall Aluminum

Hubs – QUANDO High Performance Hub, 36h

Spokes – Black, 12g

Tires – Schwalbe Big Ben Plus 27.5”x 2.0”

Battery – 48V 12.8AH Poly (Panasonic, Samsung or LG Cells) 614.4WH

Motor – EBO 48V 500W Brushless Geared Hub Motor

Controller – Ploy Intergraded KT 48V 22A Bracket

Display – KT-LCD8S U P

Pedal Assist System – KT-V12L

Throttle – Union Star 300X

Included Extras – Lights: Union Star Front (30 Lumens) and Lineo Rear

       Rear Rack – Color Matched

       Front and Rear Mud Guards

       Heavy Dude Kickstand

       Bell

Weight - The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality, weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


Item Number: NIK-STF-(SIZE)-(COLOR)
