EBO Fat Tire Kit

EBO Fat Tire Electric Bike Kit
EBO Fat Tire Electric Bike KitKT-LCD8S U Black & White LCDebike kit thumb throttleebike kit half twist throttleebike kit pedal assistebike kit brakeebike kit controllerebike kit controller boxEBO 48V Chargerebike kit wiringebike kit wiringElectric Bike Kit Illustration
Price: $1,775.00

Product Specifications

* denotes required field

Rear Wheel Hub Motor Freewheel*
Dropout Size*
Display*
Throttle Type*
Kit being installed on bike brand and model.

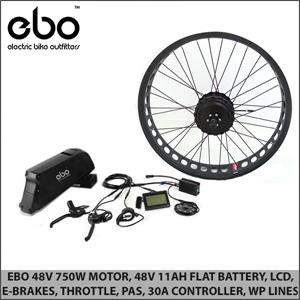

EBO Fat Tire Electric Bike Kit

Designed for maximum fat tire kit power!  This kit provides more power for off-road, larger loads and big hills.  Averaging 30 miles without pedaling at a maximum speed of 20-25 mph.   Range will increase significantly to 30-50 miles with pedal assist modes.

Specifications:

Battery - 48V 12.8AH Lithium-ion Dolphin Battery (LG Cell) with Mounting Bracket and Charger
Battery Colors - Black
Electric Motor – 48V 750W (1440W Peak Power) Brushless Geared Motor Disc or Rim Brake Type (Rear Freewheel Type)
Dropout/Open Sizes - 170mm or 190mm Dropout, 10mm Axles
Rim and Spokes Sizes -  26" X 4.0"
Electric Motor Colors - Black
Controller – 48V 30A
Controller Storage - EBO Controller Box
Clamp Diameters - 22.2mm
Display – KT LCD 3
Throttle – Thumb
E-Brake – Standard
Wiring - EBO Quick Connect Anti-Water Lines (Wiring Harnesses Lengths: 458mm rear motor to controller, 1012mm components to controller)  Other wire harness lengths are available upon request.
Pedal Assist System - 1:1PAS with 3 Levels of Assist Modes, 8 Magnet Sensor




Item Number: 48V 750W BRUSHLESS GEARED MOTOR, 48V 12AH BATTERY

Product Reviews

(10 Ratings, 2 Reviews) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
strong motor
John Killin (Albany, NY) 1/2/2020 3:45 PM
alot of fun great for the road to has pick up to get through traffic and the fat tire able to deal snowy roads and bad New York roads
ratingratingratingratingrating
The Best Kit
John Killin (Albany, NY) 6/18/2019 3:51 PM
the best kit after looking at others this a very strong motor and going up hills with no problem and it looks great it fits a fatbike perfect
