EBO Controllers

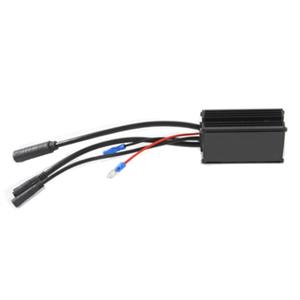

Electric Bike Controller
Electric Bike ControllerE-Bike ControllerE-Bike ControllerJulet Wiring DetailDolphin Battery ControllerJulet Connect Anti-Water Line
Price: $51.00

Product Specifications

* denotes required field

Controllers Volts and Amps*

Electric Bike Outfitters 36V/48V, 17A/22A/30A Controller Details:
  • 36V 17A Smart Controller (Julet Quick Connect Anti-Water Lines)
    • Rated Voltage: DC 36V
    • Rated Current: 8A
    • Maximum Current: 17 +/- 1A
    • Speed Set: 1 - 4.2V
    • Low Voltage Protection: DC 30 +/- 0.5V
    • Brake Input: Low-Level
    • Dimensions: 92mm (3 5/8") x 32mm (1 9/16") x 52mm (2 1/16")
  • 48V 17A Smart Controller (Julet Quick Connect Anti-Water Lines)
    • Rated Voltage: DC 48V
    • Rated Current: 8A
    • Maximum Current: 17 +/- 1A
    • Speed Set: 1 - 4.2V
    • Low Voltage Protection: DC 40 +/- 0.5V
    • Brake Input: Low-Level
    • Dimensions: 92mm (3 5/8") x 32mm (1 9/16") x 52mm (2 1/16")
  • 48V 22A Smart Controller (Julet Quick Connect Anti-Water Lines)
    • Rated Voltage: DC 48V
    • Rated Current: 11A
    • Maximum Current: 22 +/- 1A
    • Speed Set: 1 - 4.2V
    • Low Voltage Protection: DC 40 +/- 0.5V
    • Brake Input: Low-Level
    • Dimensions: 136mm (5 3/8") x 39mm (1 9/16") x 67mm (2 5/8")
  • 48V 30A Smart Controller (Julet Quick Connect Anti-Water Lines)
    • Rated Voltage: DC 48V
    • Rated Current: 15A
    • Maximum Current: 30 +/- 1A
    • Speed Set: 1 - 4.2V
    • Low Voltage Protection: DC 40 +/- 0.5V
    • Brake Input: Low-Level
    • Dimensions: 192mm (7 9/16") x 41mm (1 5/8") x 83mm (3 1/4")
Item Number: EBO Controllers
