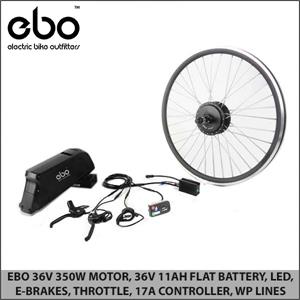

EBO Commuter 2.0 Electric Bike Kit
This basic electric bike kit provides a great product at an affordable price. It averages 20 miles without pedaling at a maximum speed of 20 mph (dependent on the rider and the topography). Range will increase significantly to 30-50 miles with
pedal assist modes. This kit can be upgrade with the EBO KT LCD3 and integrated controller mounting bracket system.
Specifications:
Battery - 36V 12.8AH Lithium-ion Dolphin Battery (LG Cell) with Mounting Bracket and Charger
Electric Motor – 36V 350W (614W Peak Power) Brushless Geared Motor Disc or Rim Brake Type (Front or Rear Freewheel Type)
Dropout/Open Sizes - 100mm, 120mm or 135mm
Rim and Spokes Sizes - 26", 28", 29" or 700C
Battery Colors - Black
Electric Motor Colors - Black
Controller – 36V 17A
Clamp Diameters - 22.2mm
Display – LED 890 (EBO/JULET Quick Connectors)
E-Brake – Two motor disruptor brake levels (EBO/JULET Quick Connectors) Disruptor Sensors are available upon request.
Wiring - EBO/JULETQuick Connect Anti-Water Lines (Wire Harnesses Lengths: 1525mm front motor to controller or 610mm rear motor to controller, 1017mm components to controller) Other wire harness lengths are available upon request.
Controller Storage - Black Plastic Controller Box
Pedal Assist System - 1:1PAS, 8 Magnet Sensor (3 Levels of Assist Modes with LED 890)
Optional Throttle – Thumb or Twist (EBO/JULET Quick Connectors)
Item Number:
36V 350W MOTOR, 36V 12.8AH FLAT BATTERY
