EBO 48V Burly

Electric Bike Kit
Electric Bike KitElectric Bike KitKT-LCD8S U E-Bike LCDE-Bike Thumb ThrottleE-Bike Half Twist ThrottleE-Bike Pedal Assist SystemE-Bike E-BrakesE-Bike E-BrakesE-Bike ChargerE-Bike WiringE-Bike WiringElectric Bike Kit IllustrationElectric bike conversion kit
Price: $1,550.00

Product Specifications

* denotes required field

Electric Motor Color*
Wheel/Rim Size*
Front or Rear Wheel Hub Motor*
Throttle Type*
Display*
E-Brake Type*
Kit being installed on bike brand and model.
Answer 1


EBO 48V Burly Electric Bike Kit

Designed for the rugged bike riders, this kit features a plastic battery case with an integrated controller.   It averages 30 miles without pedaling.  Range will increase significantly to 30-60 miles with pedal assist modes.  Maximum speed of 28 mph with the 48V system.

Specifications:

Battery - 48V 12.8AH Lithium-ion Dolphin Battery (LG Cell) with an Integrated Controller, Mounting Bracket and Charger
Electric Motor – 48V 350W (812W Peak Power) Brushless Geared Motor Disc or Rim Brake Type (Front or Rear Freewheel Type)
Dropout/Open Sizes - 100mm, 120mm, or 135mm
Rim and Spokes Sizes
- 16", 20", 24", 26", 27.5", 28", 29" or 700C
Battery Colors - Black
Electric Motor Colors
- Silver or Black
Controller – 48V 17A
Clamp Diameters - 22.2mm
Display – KT LCD3 U or KT LCD8S U with Integrated USB port (EBO/JULET Quick Connectors)
Throttle – Thumb or Twist (EBO/JULET Quick Connectors)

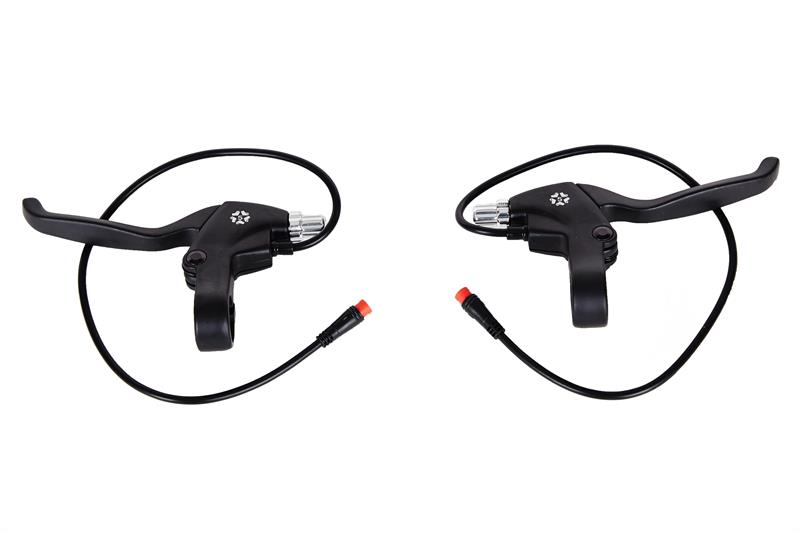

E-Brake – Two motor disruptor brake levels (EBO/JULET Quick Connectors) or Disruptor Sensor.
Wiring - EBO/JULET Quick Connect Anti-Water Lines (Wire Harnesses Lengths: 1220mm front motor to controller or 305mm rear motor to controller, 720mm components to controller)  Other wire harness lengths are available upon request.
Pedal Assist System - 1:1PAS with 5 Levels of Assist Modes, 8 Magnet Sensor


Item Number: 48V 350W MOTOR, 48V 12.8AH DOLPHIN BATTERY

Product Reviews

(3 Ratings, 2 Reviews) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Great System
Ken Hardwick (Arvada, CO) 3/19/2019 7:49 AM
EBO installed their EBO Burly Electric Bike Kit on my 2008 HP Velotechnik Scorpion on January 16,2019. Two months and 1000 miles later in some extreme weather conditions, I would like to say I have been extremely happy with this kits performance. I had purchased this system so that I would have a backup trike with ES to my other trike - HP Velotechnik Scorpion fs 26 S-Pedelec with Go SwissDrive system. Have been having issues with my Go SwissDrive system and if not resolved soon, will plan to convert this 26” Trike with a EBO system – considering the EBO Front Range 2.0 with a slightly more powerful motor since this other trike has the 26” wheel instead of a 20” wheel.
ratingratingratingratingrating
Absolutely Love It!
steve (Scottsdale, AZ) 4/14/2016 3:22 PM
I bought 2 Burly kits for boy my wife and I for our 20 & 30 year old mountain bikes. Together with more upright handlebars and comfortable seats, with the EBO assist kits we find that we really enjoy riding again. We're in our mid-50s and the kits just take all the stress off our joints, and hills or wind are no longer obstacles. I've put well over 500 miles on mine and now use my bike instead of the car for many trips using bike paths. The peddle assist really takes away all the negative of the bicycle, yet still preserves the exercise benefits depending on the assist setting. If you want more exercise put it on level 0, 1, or 2. If you don’t want to sweat and have great range, select level 4. And if you just want to be lazy put it on levels 4 or 5 and just enjoy the ride! You can easily change the settings on the fly. The kit was relatively easy to install. I now plan to sell my motorcycle as I get my "2 wheel fix" with my electric bike and enjoy it more especially when staying out of traffic on the bicycle paths.
