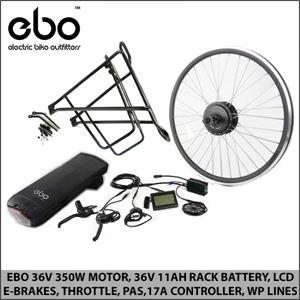

EBO Cruiser Electric Bike Kit

The best and most compatible fit for the leisure bike which also features a larger battery capacity.  It averages 20 miles without pedaling at a maximum speed of 20 mph.  Range will increase significantly to 30-50 miles with pedal assist modes.

Specifications:

Battery - 36V/48V 11AH Lithium-ion Rack Battery(Samsung Cell) with Battery Rack, Controller Storage and Charger
Electric Motor – 36V/48V 350W (614W Peak Power) Brushless Geared Motor Disc or Pad Brake Type (Front or Rear Freewheel Type)
Open Sizes - 100mm, 120mm, or 135mm
Rim and Spokes Sizes
- 16", 20", 24", 26", 27.5", 28" 29" or 700C
Battery and Electric Motor Colors - Silver or Black
Controller – 36V/48V 17A
Controller Storage - Built into the Battery Rack
Clamp Diameters - 22.2mm
Display – KT LCD 3
Throttle – Thumb
E-Brake – Standard
Wiring
- EBO Quick Connect Anti-Water Lines (Wiring Harnesses Lengths: 1600mm front motor to controller or 458mm rear motor to controller, 1372mm components to controller)  Other wire harness lengths are available upon request.
Pedal Assist System - 1:1PAS with 5 Levels of Assist Modes, 8 Magnet Sensor
Item Number: 36V/48V 350W MOTOR, 36V/48V 11AH RACK BATTERY

Product Reviews

(12 Ratings, 4 Reviews) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Cruiser
Carol (Wetmore, MI) 5/2/2016 8:46 AM
Last year I injured my knee, a meniscus tear. I love riding my Townie Electra but could only do short rides as the constant pedaling increased my discomfort. My husband added the EBO kit to my bike. With the electric motor and pedal assist I could then alternate using the assist and pedaling, making my rides longer and without the pain! I'm 69 years old, I don't want to give up riding and I need what,ever exercise I can get! Thanks to the pedal assist I can still get out on the bike paths.
ratingratingratingratingrating
Going the distance
Karen Ferrell (Fishers, IN) 4/30/2016 3:22 PM
I am a casual rider, but I love being out on my bike as long as I can. I had a Cruiser kit added to my Giant Cypress cruiser bike last fall. I took it to Florida this winter so I could get in shape to ride back home in the Spring. I road it several times a week for about 15 miles which is double what I could ride without the kit. I love that I can ride further, stay out longer and not be worn out at the end of my ride. Like one of the other reviewers, I get double-take looks when I pass other bikers in the bike lanes. I'm sure they can't figure out how I'm going so fast and appear to be peddling normal. Peddle assist is my favorite feature, but having the option to hit the throttle to get up a hill is great too. I can't image going back to a non-electric bike. It's perfect for me!
ratingratingratingratingrating
Back on two wheels
Jason Webb (Port Orchard, WA) 4/29/2016 10:50 PM
I had the pleasure of riding a bike outfitted with a Cruiser kit and had a blast riding it around Denver. I'm extremely happy that my knee that has underwent a couple surgeries didn't get sore. That's why I was so happy when I installed one on my Cannondale.
ratingratingratingratingrating
Love riding my E-Bike
James Mays (Los Angeles, CA) 4/25/2016 10:09 AM
I installed this kit on my Trek Navigator 2.0 and I am very happy with it. My first ride was 20+ miles along the Beach Path in Southern CA. The pedal assist works great and helps me extend the range and workout intensity. I love passing the guys in their pretty outfits and tree trunk legs. These guys never hear me coming and the surprise look on their faces is priceless...
